Products
Switches

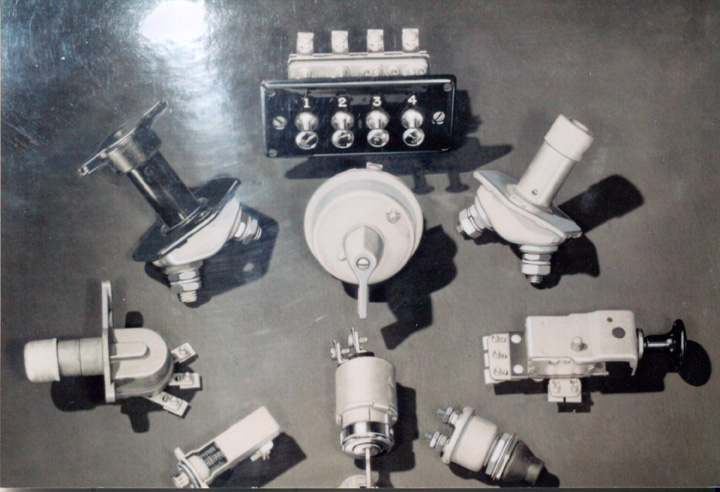

These switches used steel rather than plastic bodies that were prevalent later in the product cycle.  Photo courtesy of Ted Vinson / Madison County Historical Society.

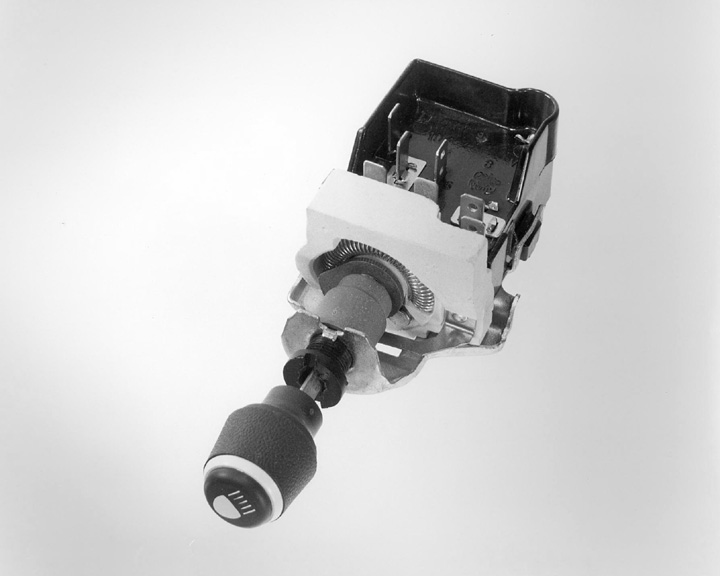

The Push-Pull Light Switch that went on millions and millions and millions of GM Vehicles.  When this was in use one always knew where the light switch in a GM vehicle was.  It was left of the steering column on the dash.  For parking lights you pulled out to the first detent, for headlights you pulled full out.  To adjust the intensity of the lighting in the instrument panel, you just rotated the shaft.  Functional and practical.  On today's they are all different configurations and when in a strange rental car after dark sometimes it gets to be problematic as to whether you can turn on your headlights or find how to adjust the intensity of the light.  Why new is not always better.  A Plant 7 and later Plant 10 product.  Gene Phillips photo.

Column Lock Ignition Switch.  This mounted on the steering column and was activated by a rod that extended back up the column to the lock where the key was inserted.  When the key was turned the rod, which fit into an plastic contact block which then would move horizontal to make proper switch positions:  Start, Run, Off, Accessory.  The rod which was L shaped at the switch end fit into the contact block in the slot shown.  DR made millions of these in Plant 7.   Gene Phillips photo.
